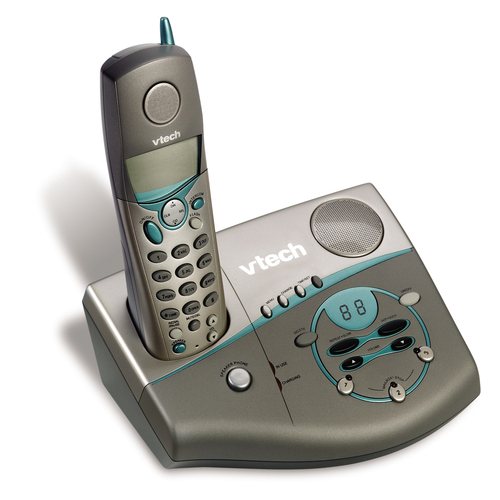

2.4 GHz digital expandable phone system with answering dev
V2656
Manuals & Documentation
Frequently Asked Questions
-
For message recording, your telephone has a Built-in answering system, and it also supports Voicemail service offered by your telephone service provider(subscription is required, and fee may apply).
The main differences between them are:
BUILT-IN ANSWERING SYSTEM VOICEMAIL SERVICE SUPPORTED BY Telephone system Telephone service provider SUBSCRIPTION No Yes FEES No May apply ANSWER INCOMING CALLS •After 3 rings by default.
•It can be changed via handset or the telephone base menu.•Usually after 2 rings.
•It can be changed by contacting your telephone service providerSTORAGE Telephone base Server or System DISPLAY NEW MESSAGE • Handset - XX new messages
• Telephone base - XX new messages• Handset -
and New voicemail
• Telephone base -
RETRIEVE MESSAGES • Press PLAY/STOP on the telephone base; OR
• Press MENU, and then select Play messages on the handset; OR
•Access remotely with an access code• Press
on the dialpad, and enter an access number from your telephone service provider.Based on the above information, if you want to...
Use the built-in answering system to record your messages
Your Voicemail service can bundle in your telephone plan. As such, you would need to contact your telephone service provider to disable it.
*TIP: Can I switch back to Voicemail service if I want to?
As long as your telephone plan includes the Voicemail service, you can still re-enable it through your service provider.Use the voicemail service to record your messages
Simply turn off the Built-in answering system at any time, and you can use the Voicemail service only.Use both the Built-in answering system and the Voicemail service to record messages
By default, the Voicemail service is usually set to answer after 2 rings, while your Built-in answering system is set after 3 rings. Please check with your telephone service provider to learn how to set your voicemail settings.Suggest to set your Built-in answering system to answer calls at least 2 rings earlier than your Voicemail service. In other words, if your answering system sets to answer after 3 rings (by default), then you need to set the Voicemail service to answer after 5 rings.
What happened is that if you on a call or the answering system is already recording, and you receive ANOTHER incoming call, then the third caller is able to leave a Voicemail message.
On the other hand, if you are not on a call nor the answering system is recording, the incoming caller can leave a message directly to the Built-in Answering system.
Why won’t the CHARGING light turn on when I place the handset in the base?
-
Tip 1 of 8
Confirm proper installation of the handset battery:
Step 1: Align the two holes in the plug with the socket pins, then snap the plug into place.
Step 2: Place the battery in the compartment, making sure the wires will not get in the way of the battery cover.
Step 3: Replace cover by sliding it upwards until it clicks into place.
Step 4: Be sure to charge the battery in the handset for a minimum of 12 hours before using your phone. -
Tip 2 of 8
When placing the handset in the charging base, confirm that the charge contacts on the handset and base are making a good connection. The CHARGING light on the telephone base will be on when the handset is charging.
You should allow 10-12 hours to fully charge the handset battery. For optimum daily performance, return the handset to its telephone base when not in use. -
Tip 3 of 8
Confirm proper installation of the telephone base power supply and handset battery. You should only use the VTech power supply provided with your telephone. Make sure the power supply is not connected to an electrical outlet that is controlled by a wall switch. Confirm that the electrical outlet that the telephone is plugged into is working. -
Tip 4 of 8
Make sure you are using the battery supplied with your phone. If you are replacing the battery and you need assistance, refer to our VTech Battery Finder. If a battery for your model is unavailable, you can search the internet using the key words cordless phone batteries for an on-line supplier. If you prefer to purchase locally, you can look for a replacement battery at your area consumer electronics retailers. It is recommended that you take your present battery with you to insure your replacement is the correct size and has the correct plug (where applicable) and specifications. -
Tip 5 of 8
Please make sure that the cords (power and telephone line) are plugged into the channels on the bottom of the base. If the cords are not properly installed, the base will not sit level and the phone may not charge properly. -
Tip 6 of 8
Make sure that the battery cover is properly secured on the handset. If the battery cover is not correctly installed, it may prevent the handset from charging. -
Tip 7 of 8
If the handset is not responding normally, you may need to reset your telephone system. Complete the following steps to reset the telephone system:
Step 1: Disconnect the power to the telephone base.
Step 2: Disconnect the handset battery(s).
Step 3: Wait a few minutes and then reconnect the power to the telephone base.
Step 4: Reconnect the handset battery(s).
Step 5: Wait about one minute for the handset to re-establish a link with the telephone base and then test the phone again.
NOTE: After resetting the telephone system, you will need to reset the clock. If the time is not set, CL will be shown on the answering system display.
To set the day and time, confirm that the answering system is turned on and then complete the following steps:
Step 1: Press TIME/SET. The system will announce the current setting.
Step 2: Press TIME/SET again. The system will announce the current day setting.
Step 3: Press CHANGE on the base until you hear the correct day.
Step 4: Press TIME/SET. The system will announce the current hour setting.
Step 5: Press CHANGE on the base until you hear the correct hour.
Step 6: Press TIME/SET. The system will announce the current minute setting.
Step 7: Press CHANGE on the base until you hear the correct minute.
NOTE: Pressing and holding the CHANGE button when setting the time will increase the minutes by 10.
Step 8: Press TIME/SET to confirm. The system will announce the new day and time setting followed by a confirmation beep. -
Tip 8 of 8
You may need to replace the rechargeable battery, especially if it has been in service for more than one year. To find a replacement, refer to our VTech Battery Finder. If a battery for your model is unavailable, you can search the internet using the key words cordless phone batteries for an on-line supplier. If you prefer to purchase locally, you can look for a replacement battery at your area consumer electronics retailers. It is recommended that you take your present battery with you to insure your replacement is the correct size and has the correct plug (where applicable) and specifications.
Why don’t I get a dial tone on my handset?
-
Tip 1 of 11
Confirm proper installation of the telephone base power supply and handset battery. You should only use the VTech power supply provided with your telephone. Make sure the power supply is not connected to an electrical outlet that is controlled by a wall switch. Confirm that the electrical outlet that the telephone is plugged into is working. -
Tip 2 of 11
When placing the handset in the charging base, confirm that the charge contacts on the handset and base are making a good connection. The CHARGING light on the telephone base will be on when the handset is charging.
You should allow 10-12 hours to fully charge the handset battery. For optimum daily performance, return the handset to its telephone base when not in use. -
Tip 3 of 11
Move the handset closer to the base. The operating range may vary with environmental conditions and time of use. There may be places within your environment that a cordless phone will not work well. If the problem only occurs in certain areas of your environment, you can conclude that there is nothing wrong with the phone. Consider trying a phone that operates on a different wireless frequency. -
Tip 4 of 11
You may need to replace the rechargeable battery, especially if it has been in service for more than one year. To find a replacement, refer to our VTech Battery Finder. If a battery for your model is unavailable, you can search the internet using the key words cordless phone batteries for an on-line supplier. If you prefer to purchase locally, you can look for a replacement battery at your area consumer electronics retailers. It is recommended that you take your present battery with you to insure your replacement is the correct size and has the correct plug (where applicable) and specifications. -
Tip 5 of 11
Other electronic products (i.e., 802.11 wireless networking products, radios, radio towers, pager towers, cell phones, intercoms, room monitors, televisions, personal computers, kitchen appliances and other cordless phones) can cause interference with your cordless phone. Try installing your phone as far away as possible from these types of electronic devices. -
Tip 6 of 11
Make sure your handset is registered to the base unit. Refer to the Registration procedure in the User’s Manual. -
Tip 7 of 11
Are you attempting to use more than two handsets on the same call? Your system allows you to use two handsets at a time. You can also forward and transfer calls from one handset to another. See your User’s Manual for details. -
Tip 8 of 11
You may have a line problem. To test for a line problem, test your unit at another location such as your neighbor’s or relative’s house. If your unit works at another location, contact your local telephone company. -
Tip 9 of 11
If you have connected this telephone to a phone jack that has not been used before, or that has not been used in sometime, there may be problems with this jack that you are not aware of. Use a telephone jack that you know is in proper working order. -
Tip 10 of 11
Recradle the handset for 15 seconds, then lift the handset and press ON. -
Tip 11 of 11
If the handset is not responding normally, you may need to reset your telephone system. Complete the following steps to reset the telephone system:
Step 1: Disconnect the power to the telephone base.
Step 2: Disconnect the handset battery(s).
Step 3: Wait a few minutes and then reconnect the power to the telephone base.
Step 4: Reconnect the handset battery(s).
Step 5: Wait about one minute for the handset to re-establish a link with the telephone base and then test the phone again.
NOTE: After resetting the telephone system, you will need to reset the clock. If the time is not set, CL will be shown on the answering system display.
To set the day and time, confirm that the answering system is turned on and then complete the following steps:
Step 1: Press TIME/SET. The system will announce the current setting.
Step 2: Press TIME/SET again. The system will announce the current day setting.
Step 3: Press CHANGE on the base until you hear the correct day.
Step 4: Press TIME/SET. The system will announce the current hour setting.
Step 5: Press CHANGE on the base until you hear the correct hour.
Step 6: Press TIME/SET. The system will announce the current minute setting.
Step 7: Press CHANGE on the base until you hear the correct minute.
NOTE: Pressing and holding the CHANGE button when setting the time will increase the minutes by 10.
Step 8: Press TIME/SET to confirm. The system will announce the new day and time setting followed by a confirmation beep.
Why do calls fade/cut in and out when I’m using this phone?
-
Tip 1 of 6
If you subscribe to DSL service for this telephone line, DSL filters must be plugged into EVERY phone jack that has a phone. The DSL signal can cause static/noise, squealing (similar to fax tones), caller ID disruption and other issues on your line. DSL filters block the high frequency DSL signals from being transmitted to the telephone. If you are not using the DSL filters provided by the telephone company, this will cause static/noise and possibly caller id issues on your phones.
In most cases, we recommend you connect the plug end of the DSL filter into the telephone jack, then connect a telephone cord between the filter and your phone.
Please contact your service provider to obtain DSL filters and installation information. -
Tip 2 of 6
Move the handset closer to the base. The operating range may vary with environmental conditions and time of use. There may be places within your environment that a cordless phone will not work well. If the problem only occurs in certain areas of your environment, you can conclude that there is nothing wrong with the phone. Consider trying a phone that operates on a different wireless frequency. -
Tip 3 of 6
Other electronic products (i.e., 802.11 wireless networking products, radios, radio towers, pager towers, cell phones, intercoms, room monitors, televisions, personal computers, kitchen appliances and other cordless phones) can cause interference with your cordless phone. Try installing your phone as far away as possible from these types of electronic devices. -
Tip 4 of 6
To get better reception, try moving the telephone base to higher location. Relocate telephone base near a window if using telephone outside. -
Tip 5 of 6
There may be places within your environment that a cordless phone will not work well. If the problem only occurs in certain areas of your environment, there is nothing wrong with the phone. This is normal radio operation. -
Tip 6 of 6
Excessive background noise will cause a speakerphone to fade in and out. Try controlling the background noise by turning off any audio devices near the speakerphone. Also, try to avoid interrupting the person at the other end of the conversation while they are speaking. If background noise cannot be controlled, you should terminate speakerphone operation and return to normal handset mode.
My telephone handset appears to be dead. What should I do?
-
Tip 1 of 7
If your handset responds in any way (beeps, displays a message on the screen, etc.) then it is not dead. Please review the Frequently Asked Questions list to check for a more specific symptom to your problem.
A common cause for dead handset symptoms is a dead battery. We recommend that you initially charge the handset battery for 12 hours. If the handset does not hold a charge or seems dead, we suggest the following:
• Please verify that the handset battery(s) is securely plugged into the back of the handset.
• Check that there is power to the base and cradle. If there is power and the handset is cradled face up, the CHARGING light on the base will be on.
• Place the handset in the cradle and charge it overnight.
-
Tip 2 of 7
Make sure you are using the battery supplied with your phone. If you are replacing the battery and you need assistance, refer to our VTech Battery Finder. If a battery for your model is unavailable, you can search the internet using the key words cordless phone batteries for an on-line supplier. If you prefer to purchase locally, you can look for a replacement battery at your area consumer electronics retailers. It is recommended that you take your present battery with you to insure your replacement is the correct size and has the correct plug (where applicable) and specifications. -
Tip 3 of 7
When placing the handset in the charging base, confirm that the charge contacts on the handset and base are making a good connection. The CHARGING light on the telephone base will be on when the handset is charging.
You should allow 10-12 hours to fully charge the handset battery. For optimum daily performance, return the handset to its telephone base when not in use. -
Tip 4 of 7
Make sure your handset is registered to the base unit. Refer to the Registration procedure in the User’s Manual. -
Tip 5 of 7
Recradle the handset for 15 seconds, then lift the handset and press ON. -
Tip 6 of 7
If the handset is not responding normally, you may need to reset your telephone system. Complete the following steps to reset the telephone system:
Step 1: Disconnect the power to the telephone base.
Step 2: Disconnect the handset battery(s).
Step 3: Wait a few minutes and then reconnect the power to the telephone base.
Step 4: Reconnect the handset battery(s).
Step 5: Wait about one minute for the handset to re-establish a link with the telephone base and then test the phone again.
NOTE: After resetting the telephone system, you will need to reset the clock. If the time is not set, CL will be shown on the answering system display.
To set the day and time, confirm that the answering system is turned on and then complete the following steps:
Step 1: Press TIME/SET. The system will announce the current setting.
Step 2: Press TIME/SET again. The system will announce the current day setting.
Step 3: Press CHANGE on the base until you hear the correct day.
Step 4: Press TIME/SET. The system will announce the current hour setting.
Step 5: Press CHANGE on the base until you hear the correct hour.
Step 6: Press TIME/SET. The system will announce the current minute setting.
Step 7: Press CHANGE on the base until you hear the correct minute.
NOTE: Pressing and holding the CHANGE button when setting the time will increase the minutes by 10.
Step 8: Press TIME/SET to confirm. The system will announce the new day and time setting followed by a confirmation beep. -
Tip 7 of 7
You may need to replace the rechargeable battery, especially if it has been in service for more than one year. To find a replacement, refer to our VTech Battery Finder. If a battery for your model is unavailable, you can search the internet using the key words cordless phone batteries for an on-line supplier. If you prefer to purchase locally, you can look for a replacement battery at your area consumer electronics retailers. It is recommended that you take your present battery with you to insure your replacement is the correct size and has the correct plug (where applicable) and specifications.
When I talk on this phone, I hear an echo. Is there a way to reduce or eliminate this condition?
-
This unit employs state-of-the-art frequency hopping spread spectrum (FHSS) technology to achieve one of the longest ranges in the consumer cordless telephone industry. FHSS is a digital technology that is also found in cellular telephones. Just as it is common to experience echo in
some cellular telephone systems, some users will experience occassional echo while using this phone. The presence and/or level of echo will depend on the electrical characteristics of the connection between the phone and the users local central office. This is normal operation.
Try lowering the volume on your handset to reduce the echo.
Why is CL flashing in the base message window?
-
During initial setup or after a power loss, you may need to set the time. If the time is not set, CL will be flashing in the base display window.
To set the day and time for the base unit, complete the following steps:
Step 1: Press TIME/SET. The system will announce the current setting.
Step 2: Press TIME/SET again. The system will announce the current day setting.
Step 3: Press CHANGE on the base until you hear the correct day.
Step 4: Press TIME/SET. The system will announce the current hour setting.
Step 5: Press CHANGE on the base until you hear the correct hour.
Step 6: Press TIME/SET. The system will announce the current minute setting.
Step 7: Press CHANGE on the base until you hear the correct minute.
NOTE: Pressing and holding the CHANGE button when setting the time will increase the minutes by 10.
Step 8: Press TIME/SET to confirm. The system will announce the new day and time setting followed by a confirmation beep.
Why is an A showing in the base message window?
-
An A will appear in the display window when the Announce Only feature is turned on. In Announce Only mode, callers hear an announcement but cannot leave a message.
To turn Announcement Only mode off, please complete the following steps:
Step 1: Press MENU until the system announces, "Set Announce only.."
Step 2: Press CHANGE until you hear "off."
Step 3: Press TIME/SET to save.
Step 4: Press any MAILBOX key to exit programming.
For more information on configuring Announce Only and other features of the answering system, please refer to the Answering System Operation section of the user manual.
-
In Announce Only mode, callers hear an announcement but cannot leave a message.
To turn Announcement Only mode off, please complete the following steps:
Step 1: Press MENU until the system announces, Set Announce only..
Step 2: Press CHANGE until you hear OFF.
Step 3: Press TIME/SET to save.
Step 4: Press any MAILBOX key to exit programming.
For more information on configuring Announce Only and other features of the answering system, please refer to the Answering System Operation section of the user manual.
How do I register a new accessory handset to the base?
-
To register a handset to the base, follow these steps:
Step 1: If ENTER BASE ID is displayed on the handset, proceed to the next step; if not, press MENU on the handset, then press ▼ until REGISTER is highlighted; now press OK.
Step 2: Locate the 15-digit Base ID number (BSID), found on the underside of the Base. Carefully enter this number using the handset dialpad. If you make a mistake, press ‹ to backspace. When finished, press OK.
In a few moments, the handset will be assigned a number (1-4). This will be the lowest available number in the sequence not previously assigned to another system handset.
Step 3: Repeat the procedure for any other unregistered system handsets.
Why am I not receiving caller ID on my phone?
-
Caller ID and Call Waiting ID are subscription services, available from most local telephone service providers. You must subscribe to these services in order for the features to work on your phone. Contact your local telephone service provider for more information.
In addition, your caller must be calling from an area that supports caller ID.
Both you and your caller’s telephone service provider must use compatible caller ID systems.
If you subscribe to DSL service for this telephone line, DSL filters must be plugged into EVERY phone jack that has a phone. The DSL signal can cause caller ID disruption, static, noise and other issues on your line. DSL filters block the high frequency DSL signals from being transmitted to the telephone. If you are not using the DSL filters provided by the telephone company, this will cause static/noise and possibly caller id issues on your phones.
In most cases, we recommend you connect the plug end of the DSL filter into the telephone jack, then connect a telephone cord between the filter and your phone.
Please contact your service provider to obtain DSL filters and installation information.
Caller ID and Call Waiting ID may not be available for every call. Common reasons are incompatibilities between your and your caller’s service, transmission errors and answering calls before the ID data is received.
How can I improve the sound quality on my cordless phone?
-
If your handset has a CHANNEL (or CHAN) button, press it in order to improve the sound quality. You may need to press the CHANNEL button more than once.
The handset may be out of range. Try moving closer to the base. The handset(s) and base can only communicate over a certain distance which can vary with their placement, the weather and the operating environment of your home/office.
If you subscribe to DSL service for this telephone line, DSL filters must be plugged into EVERY phone jack that has a phone. The DSL signal can cause static/noise, squealing (similar to fax tones), caller ID disruption and other issues on your line. DSL filters block the high frequency DSL signals from being transmitted to the telephone. If you are not using the DSL filters provided by the telephone company, this will cause static/noise and possibly caller id issues on your phones.
In most cases, we recommend you connect the plug end of the DSL filter into the telephone jack, then connect a telephone cord between the filter and your phone.
Please contact your service provider to obtain DSL filters and installation information.
A low battery pack may affect the sound quality. You may need to charge the handset. Also, try repositioning the handset against your ear until the sound quality improves.
Electronic products (i.e., 802.11 wireless networks, radios, radio and pager towers, cell phones, intercoms, room monitors, televisions, personal computers, kitchen appliances and other cordless phones) can cause interference with your cordless phone. Try installing your phone as far away as possible from these types of electronic devices.
Appliances or other cordless phones plugged into the same circuit as the telephone base can cause interference. Try moving the appliances or telephone base to another outlet.
Microwave ovens may operate on the same frequency as your telephone. You may experience static on your telephone while the microwave oven is operating. Do not install your cordless telephone in the same outlet or near the microwave oven.
Disconnect the telephone base from the modular jack and plug in a corded telephone. If calls are still not clear, the problem is probably in the wiring or local service. Contact your local service company (charges may apply).
If your phone shares a power outlet with a modem, or if it is plugged into a shared surged protector, try plugging in the phone (or modem/surge protector) at a different location. If this solves the problem, relocate your phone and modem farther apart from each other, or use separate surge protectors.
The layout of your home or office may be limiting the operating range. Try moving the base to another location, preferably a higher location for better reception. If your telephone base has an adjustable antenna, ensure it is pointing up.
Why won’t the battery(s) in my telephone handset hold a charge?
-
Tip 1 of 5
Confirm proper installation of the telephone base power supply and handset battery. You should only use the VTech power supply provided with your telephone. Make sure the power supply is not connected to an electrical outlet that is controlled by a wall switch. Confirm that the electrical outlet that the telephone is plugged into is working. -
Tip 2 of 5
Confirm proper installation of the handset battery:
Step 1: Align the two holes in the plug with the socket pins, then snap the plug into place.
Step 2: Place the battery in the compartment, making sure the wires will not get in the way of the battery cover.
Step 3: Replace cover by sliding it upwards until it clicks into place.
Step 4: Be sure to charge the battery in the handset for a minimum of 12 hours before using your phone. -
Tip 3 of 5
Make sure you are using the battery supplied with your phone. If you are replacing the battery and you need assistance, refer to our VTech Battery Finder. If a battery for your model is unavailable, you can search the internet using the key words cordless phone batteries for an on-line supplier. If you prefer to purchase locally, you can look for a replacement battery at your area consumer electronics retailers. It is recommended that you take your present battery with you to insure your replacement is the correct size and has the correct plug (where applicable) and specifications. -
Tip 4 of 5
When placing the handset in the charging base, confirm that the charge contacts on the handset and base are making a good connection. The CHARGING light on the telephone base will be on when the handset is charging.
You should allow 10-12 hours to fully charge the handset battery. For optimum daily performance, return the handset to its telephone base when not in use. -
Tip 5 of 5
You may need to replace the rechargeable battery, especially if it has been in service for more than one year. To find a replacement, refer to our VTech Battery Finder. If a battery for your model is unavailable, you can search the internet using the key words cordless phone batteries for an on-line supplier. If you prefer to purchase locally, you can look for a replacement battery at your area consumer electronics retailers. It is recommended that you take your present battery with you to insure your replacement is the correct size and has the correct plug (where applicable) and specifications.
-
Despite your VoIP box shows full signal strength, there could still be no dial tone/ display Line in Use/ etc. This may due to the abnormality of signal and voltage levels. Follow this short video to reset your VoIP box and its connected devices.
(For non-IS8151 series - all other models) https://www.youtube.com/watch?v=mXbXl4froUc&t=25s
(For IS8151-X series) https://www.youtube.com/watch?v=rJ9PNkwBzfE&t=3s
[Background]
• VoIP box connected via SIM/ LAN connection.
• Some VoIP boxes have displays and some not. While displays show steady ON and ready, you might still experience with no dial tone sound/ display Line in Use.[To Reset]
• Some Power off button does not fully power off the unit. It only put the VoIP box in standby mode. To truly power off, unplug the power adapter of your VoIP box.
• Disconnect all devices from the box. After a moment, reconnect your power adapter, and then press power button to turn ON.
• Wait until the VoIP box is steady ON and ready.
• Connect your telephone cable from your Telephone base to your VoIP box.REMINDER!!!
• Make sure you didn't connect the telephone cable from the Telephone wall outlet to VoIP box telephone port!!! Doing so will not damage the device, but it will affect the call function and becomes unusable. This is why you experience no dial tone, Line in Use with busy tone, etc.
• During power outage, your landline phone will not be available since it requires external electric power despite your VoIP box has a backup battery.If this situation persists, contact your VoIP / VoIP box service provider for further support.
